Diamond Carelyte® Plus
The Choice for Veterinary Laboratories

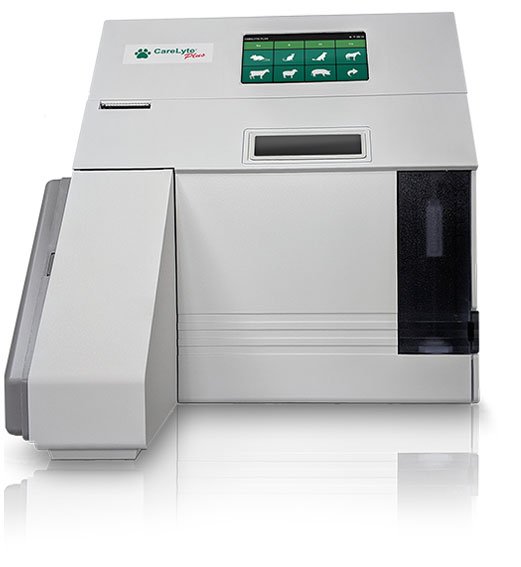

The Diamond Diagnostics CareLyte® Plus Electrolyte Analyzer for is a completely automated system measuring Na+, K+, Cl-, Ca++ and Li+ in whole blood, serum, plasma and urine utilizing Ion Selective Electrode (ISE) technology. The Diamond CareLyte® Plus is uniquely designed with a powerful microprocessor allowing for easy interface with external LIS systems, operation with a new touch screen interface, bar code scanner and storage and retrieval of over 10,000 patient results. The system currently operates in over 12 languages and offers testing on Feline, Canine, Bovine, Equine, Swine and Ovine samples. The perfect analyzer for any size Veterinary Laboratory.
Featured Benefits
- 28 Sec Analysis
- 512 Tests/Hour
- 40,000 Results Stored
- Touch Screen Display
- Remote User Access
- Online Service Interface
Fastest Results • Large Storage Capacity • Advanced Functionality
User Input
5” Touch Screen
Remote Access
Data Storage
10,000 Patient Results
10,000 QC Results per Level
Connectivity
LAN, Wifi, 4 USB ports
RS232, LIS
Analysis Time
28 sec (512/hour)
Support
Online Service Interface
Number of Parameters
5 Total 4 (Simultaneously)
Calibration
2 Point every 4 hours
1 Point every sample
On Demand
Sample Size
Whole Blood, Serum (95 µl)
Plasma, QCs (95 µl)
Urine (180 µl)
Veterinary Options
Feline, Canine, Bovine,
Equine, Swine, Ovine,
Murine or Open
Languages
English, 中文, Español,
Français, Deutsch,
Indonesia, Italian, 日本語,
日本語, 한국어, Português,
Polskie, Русский, Türkçe

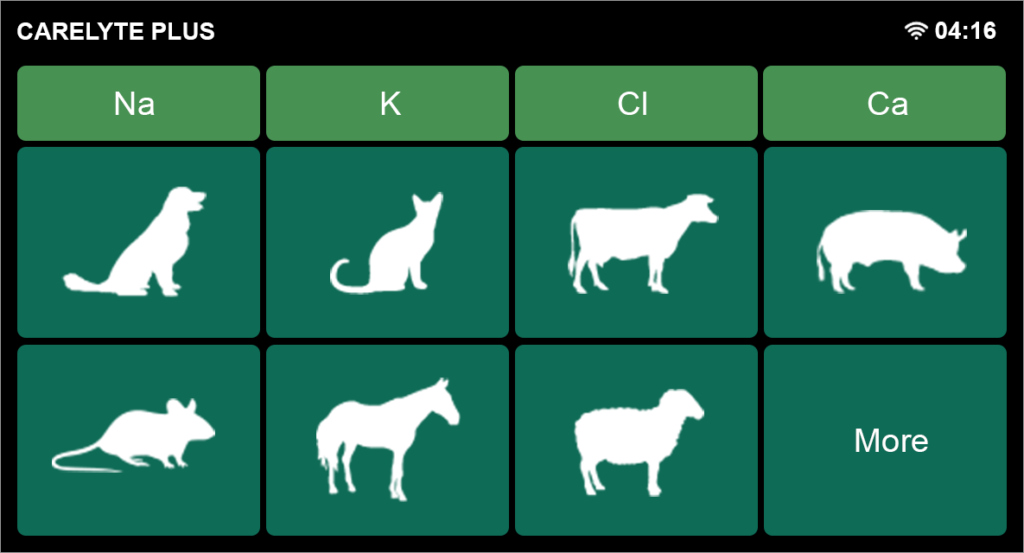

User Friendly Navigation
User Friendly Navigation
Simple Search Function

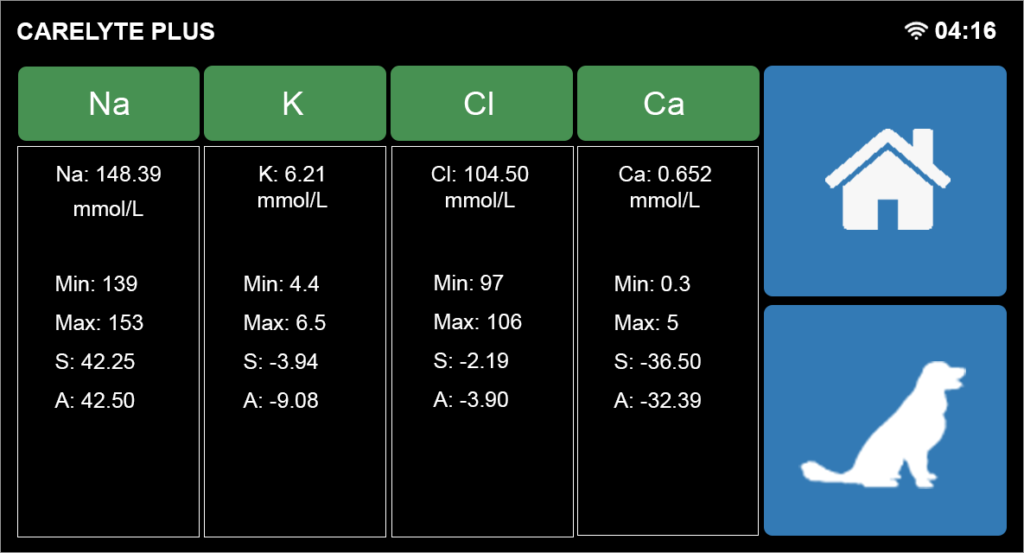

Easily Access Data and Results
Parameters and Specifications
| Parameters | Range | Reproductibility* | Resolution |
|---|---|---|---|
| Serum Na+ | 40-200 mmol/L | CV ≤ 1% (120-160 mol/L) | 0.1 mmol/L |
| Serum K+ | 1.7-15 mmol/L | CV ≤ 1.5% (2.5-6 mmol/L) | 0.01 mmol/L |
| Serum CL– | 50-200 mmol/L | CV ≤ 1% (85-130 mmol/L) | 0.1 mmol/L |
| Serum Ca++ | 0.3-5.0 mmol/L | SD ≤ 0.02 mmol/L (0.8-1.5 mmol/L) | 0.001 mmol/L |
| Serum Li+ | 0.2-5.5 mmol/L | SD ≤ 0.03 mmol/L (0.4-1.3 mmol/L) | 0.001 mmol/L |
| Urine** Na+ | 3-300 mmol/L | CV ≤ 5% (100-250 mmol/L) | 0.1 mmol/L |
| Urine** K+ | 5-120 mmol/L*** | CV ≤ 5% (10-60 mmol/L) | 0.01 mmol/L |
| Urine** CL– | 15-300 mmol/L | CV ≤ 5% (100-250 mmol/L) | 0.1 mmol/L |
*Typical Within Run (n=30) Blood, Serum, Plasma
**Calcium and Lithium are not typically measured in urine samples
***(60-120) requires additional dilution
Power
100-240V ~ 50/60 Hz
(self adjusting)
11.6 A max, 50 Watts max
Size & Weight
13.2 x 12.4 x 12 in
or 335 x 315 x 295 mm
14 lbs or 6 kgs
Ambient Conditions
Room temperature:
15-32°C/60-90°F
Humidity <85%
