Diamond Prolyte®
The World's Most popular Electrolyte Analyzer

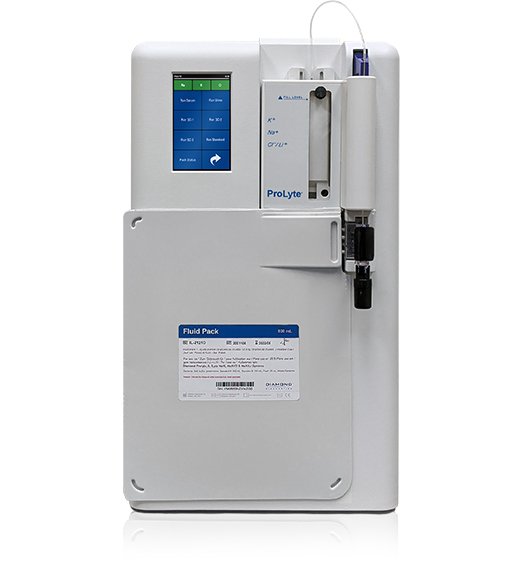

The Diamond Diagnostics ProLyte® Electrolyte Analyzer is a completely automated system measuring Na+, K+, Li+ and Cl- in whole blood, serum, plasma and urine utilizing Ion Selective Electrode (ISE) technology. The Diamond ProLyte® was uniquely designed with the user in mind. With the 4” touch screen display or USB keyboard, easily navigate menus, search patient results, run on-screen diagnostics and access data remotely.
Featured Benefits
- 28 Sec Analysis
- 512 Tests/Hour
- 40,000 Results Stored
- Touch Screen Display
- Remote User Access
- Online Service Interface
"Economical, Accurate and Easy to Maintain. Perfect for any size Lab."
Y. Patel, Pathologist
User Input
5” Touch Screen
External Keyboard
Remote Access
Data Storage
10,000 Patient Results
10,000 QC Results per Level
Connectivity
LAN, Wifi, 4 USB ports
RS232, LIS
Analysis Time
45 sec (240/hour)
Support
Online Service Interface
Number of Parameters
Na+ K+ Cl- L+
4 Total / 3 (Simultaneously)
Calibration
2 Point every 4 hours
1 Point every sample
On Demand
Sample Size
Whole Blood, Serum (100 µl)
Plasma, QCs (100 µl)
Urine (350 µl)
Languages
English, 中文, Español,
Français, Deutsch,
Indonesia, Italian, 日本語,
日本語, 한국어, Português,
Polskie, Русский, Türkçe

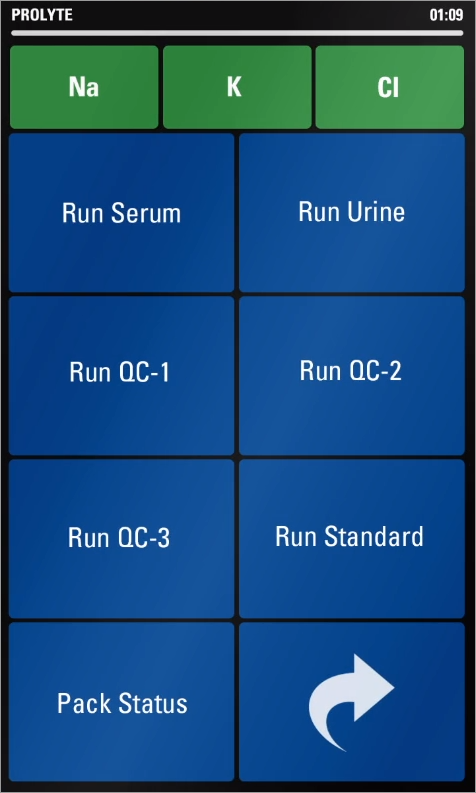

User Friendly Navigation
Easy Access to Data/Results
One Touch Calibration

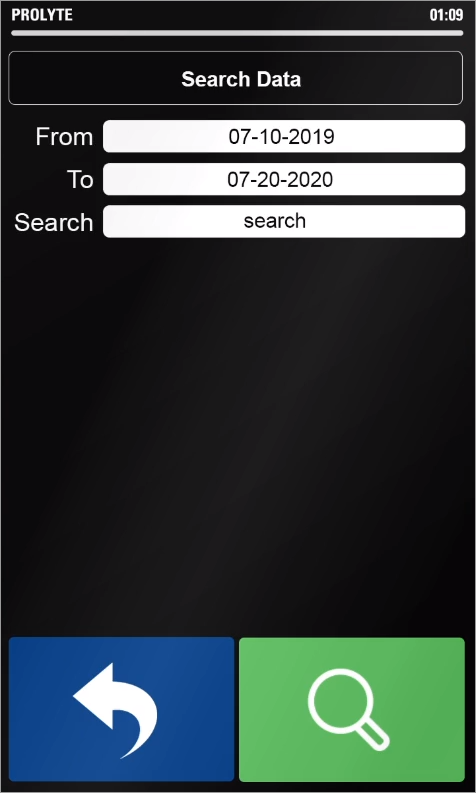

Simple Search Function

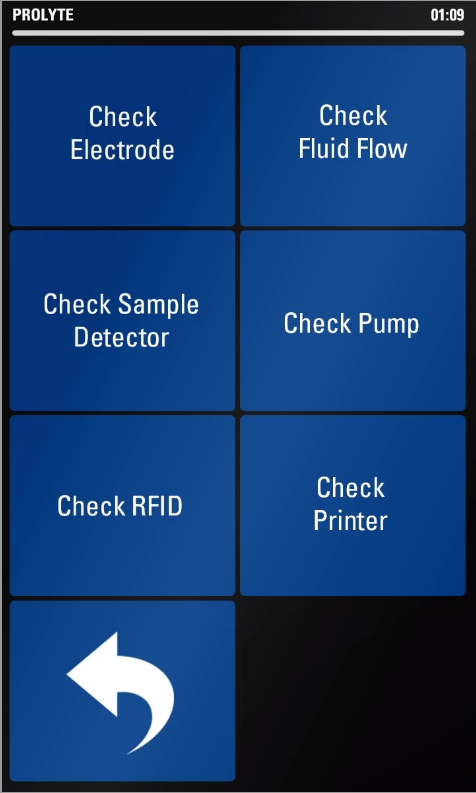

Onscreen System Diagnostics
Parameters and Specifications
| Parameters | Range | Reproductibility* | Resolution |
|---|---|---|---|
| Serum Na+ | 40-200 mmol/L | CV ≤ 1% (120-160 mol/L) | 0.1 mmol/L |
| Serum K+ | 1.7-15 mmol/L | CV ≤ 1.5% (2.5-6 mmol/L) | 0.01 mmol/L |
| Serum CL– | 50-200 mmol/L | CV ≤ 1% (85-130 mmol/L) | 0.1 mmol/L |
| Serum Ca++ | 0.3-5.0 mmol/L | SD ≤ 0.02 mmol/L (0.8-1.5 mmol/L) | 0.001 mmol/L |
| Serum Li+ | 0.2-5.5 mmol/L | SD ≤ 0.03 mmol/L (0.4-1.3 mmol/L) | 0.001 mmol/L |
| Urine** Na+ | 3-300 mmol/L | CV ≤ 5% (100-250 mmol/L) | 0.1 mmol/L |
| Urine** K+ | 5-120 mmol/L*** | CV ≤ 5% (10-60 mmol/L) | 0.01 mmol/L |
| Urine** CL– | 15-300 mmol/L | CV ≤ 5% (100-250 mmol/L) | 0.1 mmol/L |
*Typical Within Run (n=30) Blood, Serum, Plasma
**Calcium and Lithium are not typically measured in urine samples
***(60-120) requires additional dilution
Power
100-240V ~ 50/60 Hz
(self adjusting)
1.6 A max, 50 Watts max
Size & Weight
9.5” (24cm) W x 16.5” (42cm)
14 lbs or 6 kgs
Ambient Conditions
Room temperature:
15-32°C/60-90°F
Humidity <85%
