Diamond Unity®
Integrated Electrolyte System

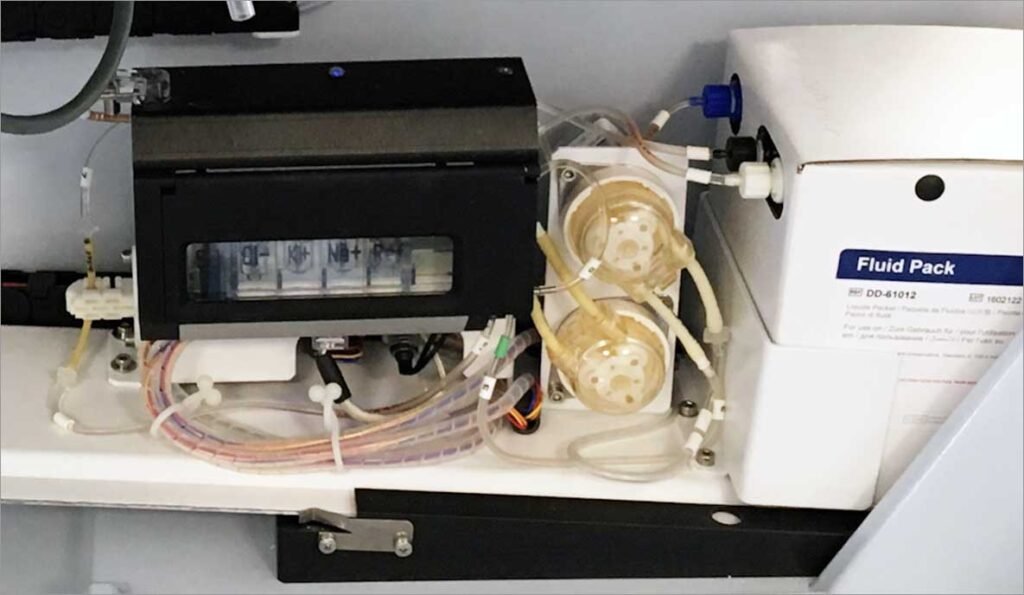

The Diamond Diagnostics Unity Integrated Electrolyte System is a fast and compact ISE module measuring Na+, K+ and Cl- within Serum, Plasma and Diluted Urine utilizing Ion Selective Electrode (ISE) technology. The Diamond Unity® is uniquely designed with a powerful microprocessor and integrated electronics allowing for easy integration into any size Chemistry Analyzer platform.
Featured Benefits
- Compact Size
- Flexible Reagent System
- Long Life Reference
- Accessible Service Area

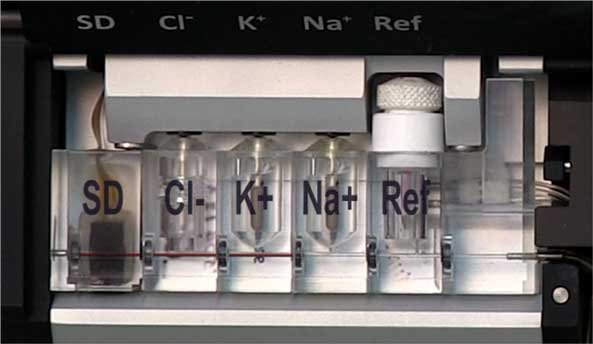

- Fully Visible Pathway
- Fully Shielded Measurement Chamber
- Positive Engagement Latching System
- Horizontal Electrode Orientation
Built-In Modular Sample Cup Option • Accessible Service Area
Sample
Serum or Diluted Urine
Data Storage
2000 Patient Results
500 QC Results per level (3)
100 Calibrations
Communication
RS232 Communication
Analysis Time
Serum: 30 sec (100 per hour) Urine: 60 sec (50 per hour)
Calibration
2 Point every 8 hours On Demand
1 Point after every Measuremen
Number of Parameters
3 (Simultaneously)
Sample Size
60 – 100 µl Serum 140 – 150 µl Urine
Simple Integration
Custom Parameter Options
Recirculating Reference Electrode
Rapid Integration
Parameters and Specifications
| Parameters | Range | Reproductibility | Resolution |
|---|---|---|---|
| Serum Na+ | 50-200 mmol/L | CV ≤ 1% (120-160 mol/L) | 0.1 mmol/L |
| Serum K+ | 1.5-10.00 mmol/L | CV ≤ 2% (2.8-6 mmol/L) | 0.01 mmol/L |
| Serum CL– | 50-200 mmol/L | CV ≤ 2% (80-120 mmol/L) | 0.1 mmol/L |
| Urine Na+ | 20-500 mmol/L | CV ≤ 5% (60-280 mmol/L) | 1.0 mmol/L |
| Urine K+ | 5-300 mmol/L* | CV ≤ 5% (30-170 mmol/L) | 1.0 mmol/L |
| Urine CL– | 10-500 mmol/L | CV ≤ 5% (80-230 mmol/L) | 1.0 mmol/L |
*(60-120) requires additional dilution
Power
12VDC, 2.0A
(self adjusting)
Size & Weight
92 mm (H) x 134 mm (W) x 46 mm (D) or 335 x 315 x 295 mm 3.70” (H) x 5.27” (W) x 1.81” (D)
Ambient Conditions
Room temperature:
15-32°C/60-90°F
Humidity <85%
